Juice's HID Retrofit Project

Post by Juice on Mon Sep 13, 2010 11:44 pm

So, I thought I'd start a thread to show the progress of my retrofit project.

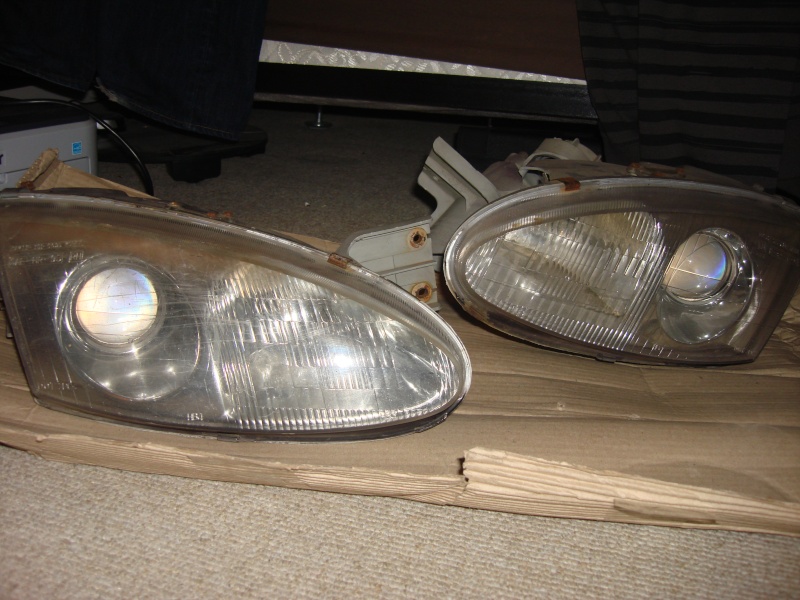

Picked up a set of used headlights through Kijiji for $120 (test fitted eyelids):


Picked these up during the free parts day at Standard Auto Wreckers:




Started prying out the projector housings:


I think I'd like to use these one:

It has a spiral lens (fresnel) which blurs the light at the edges, so I'll be trying to put in clear lenses for a sharper cutoff.
Fresnel

Clear (needs to be cleaned and polished)


Well ... that's it for now. Smile
